Product Details:
|
| Working Methods: | Near Infrared Light | Light Source: | LED |
|---|---|---|---|
| Display Mode: | Projecting To Human Skin | Radiation: | No |
| Image Resolution: | 360*240 Piexl | Depth Of Investigation: | ≤8mm |
| Highlight: | vein finder machine,portable vein finder |
||
Professional Vein Visual Machine Vein Locator Vein Finder With CE Certificate
Vascular Detector is a revolutionary tool for helping to locate veins for medical procedures.
Useful for a variety of patients in many settings and serves to supplement existing venipuncture techniques. Vein Imaging Equipment BS5000 uses an infrared camera to highlight blood and then projects the image onto the skin, making easier for health care provides to do necessary needle sticks.
Suitable for locate the veins on dorsal hand, arm, elbow, foot and head.
Product Applications
- Hospital, pediatric clinic, injection room
- Outpatient clinic, medical laboratory
- Blood bank, military medics unit, the CDC
- Rehabilitation center, nursing homes and others
Applicable Patients
- Children, elderly, obese patients, dark-skinned patients
- Patients with anemia or low perfusion or hypotension or excessive loss blood
- Patients who took chemo or has vascular collapse
Feature
| Safety | Using near infrared light, no laser, no radiation. |
| Accurate | Real show on skin, affectless images of veins. |
| Fast | Focus on vein automatically, show vein immediately. |
| Non-touch | Non-touch to anybody, prevent transmission of the virus. |
| Wide application | Adult, child, obese, dark-skinned and so on. All person available |
| Free environment | Effectively show the vein in dark or bright conditions, indoor and outdoor. Optional battery ensure 2 hours’ continuous working once external power supply is off. |
| Portable and Flexible | Easy to move, fix and operate. One button for power on/off, one button for brightness, one button for color selection Total three Buttons for all operations. |
| Easy to learn, no need for complicated debugging and maintenance. | |
| 3 colors offered | white,grey and green vein for being selected according to user’s habit. |
Product Specification
| Feature Name | BS5000 |
| Projection type | Projection Imaging |
| Projection tech. | DLP projection |
| Projection mode |
normal mode,green light mode,depth recognition mode ,reverse mode,adult & kids switching mode |
| scattering light source | near-infrared light wave 850mm |
| Imaging speed | ≤25 frame/s |
| Optimal imaging distance | 300mm±30mm |
| Image resolution | 360x240 |
| Alignment precision | ≤0.3mm |
| Working Temp.& Humidity | 0℃~45℃,≤80%RH |
| Battery | DC7.4V 6000mAH |
| Direction Regulation | Any direction |
| Infrared radiation energy | ≤50μW/m2 reference to natural light |
| Brightness | ≤1500Lux |
| Rated Power | 25W |
| Vein recognition depth | 10mm |
| Battery-powered working time | ≤200mins |
| Continuous working time | >4h |
| Charging Time | 8h |
| Storage temp.& humidity | -10℃~45℃,≤80%RH |
| Adaptor | DC 12V,AC 220V 50Hz |
| Main Size | 22cm * 6.5cm * 6.3cm |
| Main Weight | 0.4KG |

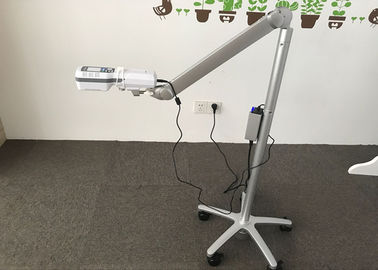

| Stand T | size:63cm*50cm*48cm |
| Lifting adjustable height:280mm | |
| Applicable occasions: fixed place ,e.g.injection room, blood center | |
| fine-tuning lifting by knob |

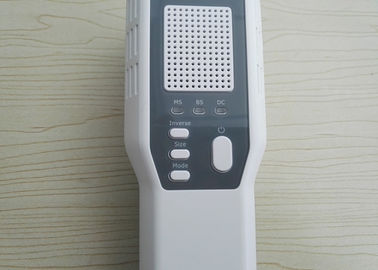

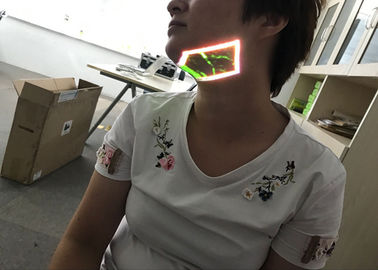

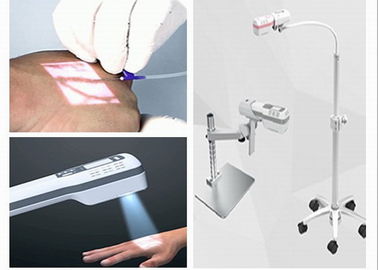

Product image
Check the catalogue of vein finder BS5000 as below:
