Product Details:
|
| Resolution: | 1920 X 1080 Pixels | Light Source: | Neutral White Light Emitting Diode (LED) |
|---|---|---|---|
| LCD Monitor: | 3.5” Full Color TFT-LCD | Image Format: | JPEG (Photograph) And H.264 (Video) |
| InteractionPort: | Mini USB, Phone Jack Port | Media Type: | Micro SD Memory Card, 2GB |
| Highlight: | otoscope ophthalmoscope set,digital colposcope |
||
Lcd Monitor Digital Vieo Otoscope Ophthalmoscope For Clinical Inspection Of Human Body

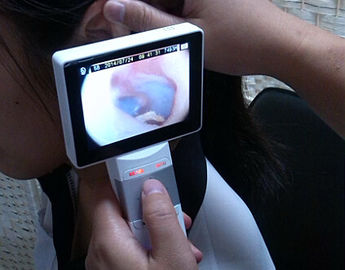

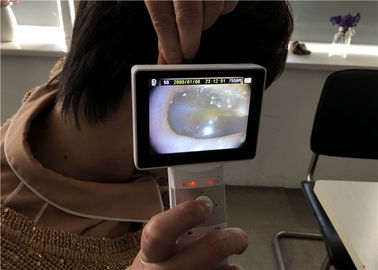

BS4 USB mini digital video otoscope is one set of the full digital inspection scopes, mainly used for clinical inspection of human body.
Specification
| Resolution | 1920 x 1080 pixels |
| Light Source | Neutral White Light Emitting Diode (LED) |
| LCD Monitor | 3.5” Full Color TFT-LCD |
| Image Format | JPEG (Photograph) and H.264 (Video) |
| InteractionPort | Mini USB, Phone Jack Port |
| Media Type | Micro SD Memory Card, 2GB. |

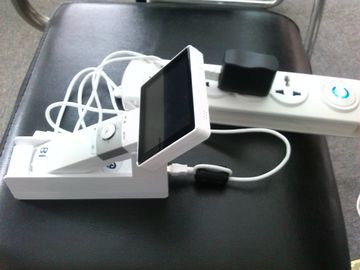

| Power Source | Rechargeable Lithium Battery 3.7V / 2600mAh |
| External Power | Source: 100~240 VAC, 50/60 Hz |
| Operating time | 3 hours at 2.5 Watt condition |
| Charging time | 5 hours |

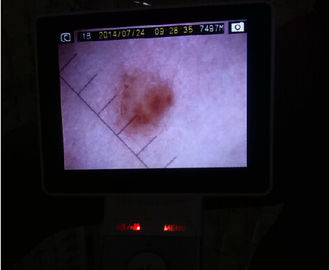

| Digital Otoscope | Digital Dermatoscope | Digital General Imaging |
| Focus range : 5~30 mm | Focus range : 10 mm | Focus range :80 angle(diagonal) |
| Dimensions :8.5 ´ 9 ´ 20 cm3 | Dimensions : 8.5 ´ 8 ´ 20 cm3 | Dimensions :8.5 ´ 5 ´ 20 cm3 |
| Weight : 330g | Weight : 370g | Weight :310g |

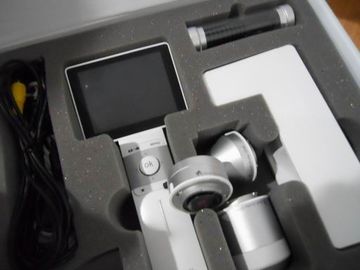

The scopes includes 3 sets of lens components, which are otoscope, dermatoscope and general imaging
BIO_BS4 E-catalogue of digital endoscope.pdf
User's manual for medical scope BIO_BS4.pdf
