Product Details:
|
| Working Methods: | Near Infrared Light | Display Mode: | Projecting To Human Skin |
|---|---|---|---|
| Light Source: | LED | Radiation: | No |
| Screen: | 8 Inch | Wavelength: | 850nm |
| Highlight: | portable vein finder,vein locating device |
||

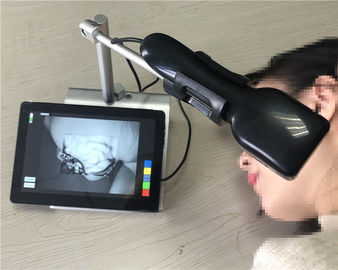

Safe Portable Infrared Vein Locator Device Vein Scanner Screen Displayed
Product principle
According to surrounding tissues, blood vessels, oxygenated hemoglobin in the near-infrared light of different wavelengths absorbed dose is different, through photoelectric conversion and image processing, the information will shoe clear veins. Improved version of the portable model adopted the new technology, enhances version of the variety of color mode, can more effectively improve the resolution and identification.
Application people
Infants
Children
Obese patients
Patients with edema
Patients with tumor and chemotherapy
Patients with venous blood vessels
Product Advantages for Vein finder
Technical Parameters
| Item | Paremeter |
| Image model | 8 inch touch screen |
| wavelength | 850nm |
| imaging technology | 2 million pixels infrared camera |
| imaging speed | ＞32 frame/second |
| imaging depth | ≤10mm |
| resolution | 800*1280 |
| registration accuracy | ＜0.2mm |
| best imaging distance | 140-180mm |
| Item | Paremeter |
| infrared light energy | 0.36w |
| battery working time | 4h |
| charging time | 4-5h |
| stent type | desktop |
| gross weight | 1950g |
| packing size | 360*310*230mm |
